Create Form

You can create dedicated Form very easily.

sudo /usr/local/small-shell/adm/gen -app
Type of APP (1.BASE | 2.FORM | 3.SCRATCH): 2
# Dialog will be started, You can define keys which will be inserted to the Form in the dialog.

Seceinario

This is an example of creating survey Form and analyzing result.

  1. Create DataBox for survey
  2. Create survey Form for end user
  3. Analyze survey result with graph

Required

Please setup Base APP beorehand refering to Base APP

Create DataBox

For the first step, need to create survey databox to push data through Form.

sudo /usr/local/small-shell/adm/gen -databox
Databox Name: survey.box

Note

For using Form, primary key of the databox must be "hashid". please set hashhid in the dialog as following.
primary_key(col1): hashid

Result of dialog
Databox Name:survey.box
#primary_key
name="hashid"
label="#ID"
type="text"
option="required"

#column2
name="impression"
label="Impression of this product"
type="radio"
params="Good,Average,Bad"
option="required"

#column3
name="comment"
label="Comment"
type="textarea"
option=""

Generate Form

Then let's create survey Form for end users

sudo /usr/local/small-shell/adm/gen -app
Type of APP (1.BASE | 2.FORM | 3.SCRATCH): 2
Form Name: survey
Result of dialog.

In this example, some keys of survey.box are excluded for end user Form and IP whitelisting is set as "no". If you set "yes" for IP whitelisting, please define IP list using ops command. IP whitelisting detail is on APP shell tour

Form will be generated by following order, please check it.
-----------------------------------------------------------------

APP Type: 2.FORM
Form Name: survey
Target Databox: survey.box
Description: This is a internal survey of product A
IP_whitelisting: no
Included keys: impression,comment
Access URL: https://ec2-XX-XX-XX-XX.compute.XXXX.com/survey

-----------------------------------------------------------------

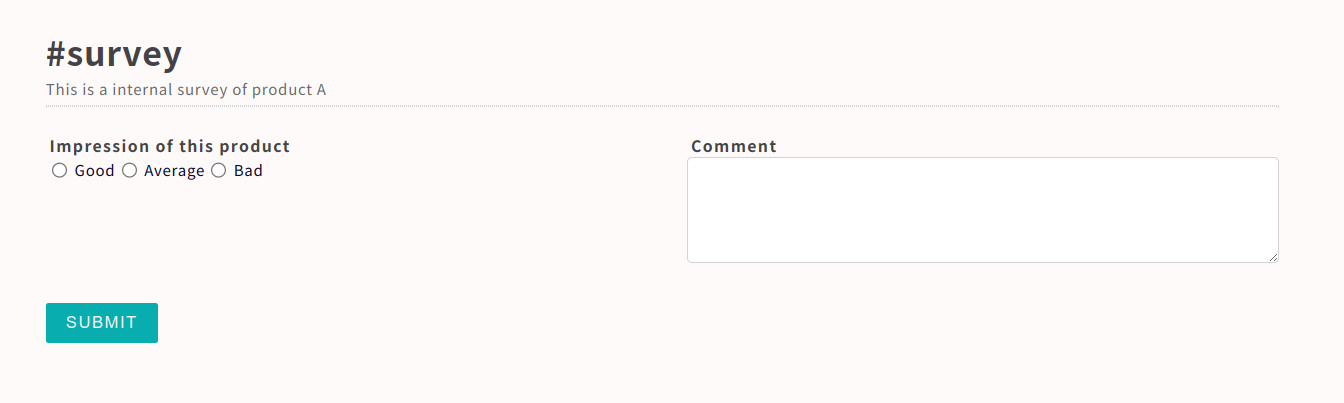

Access to the Form

As you already checked, access URL is shown in the gen dialog. the URL must be $FQDN/$app

 e.g.) https://ec2-XX-XX-XX-XX.compute.XXXX.com/survey

Screenshot

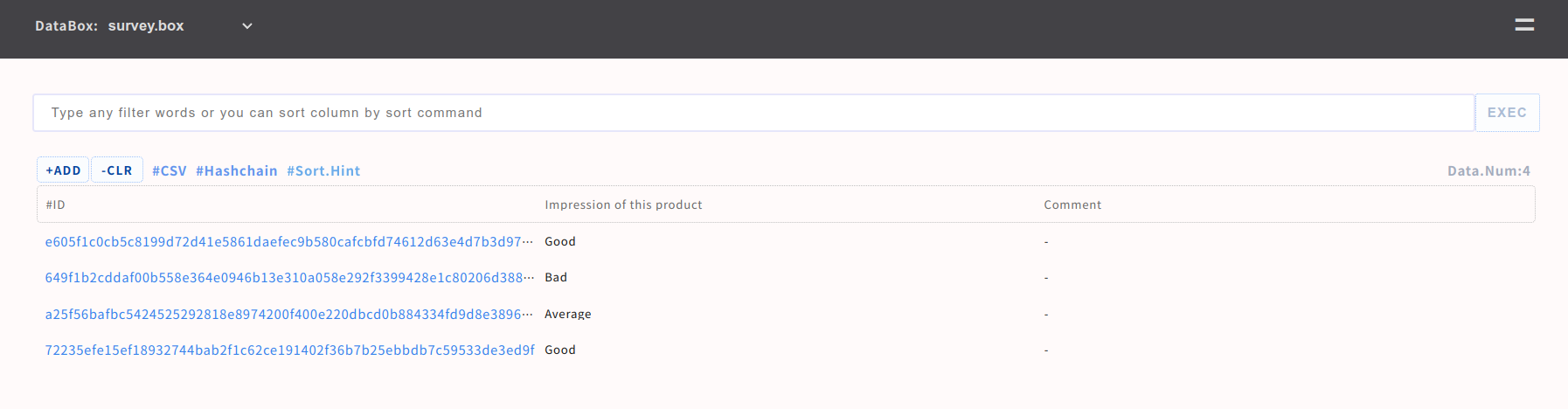

Check databox via Base APP

Data will be pushed to the databox through the survey Form. admin can check survey results thorough Base APP. then you can analyze result on table view or console box.

Screenshot

Make snapshot graph

You can viruslize survey results to the graph.

Note

please setup pyshell env beforehand, see detail at pyshell

example executed on Apr 3rd 2022 as snapshot.
sudo -u small-shell /usr/local/small-shell/util/scripts/countup.sh databox:survey.box \
key:impression filters:Good,Average,Bad type:pie title:2024-11-28_survey_result frequency:snapshot

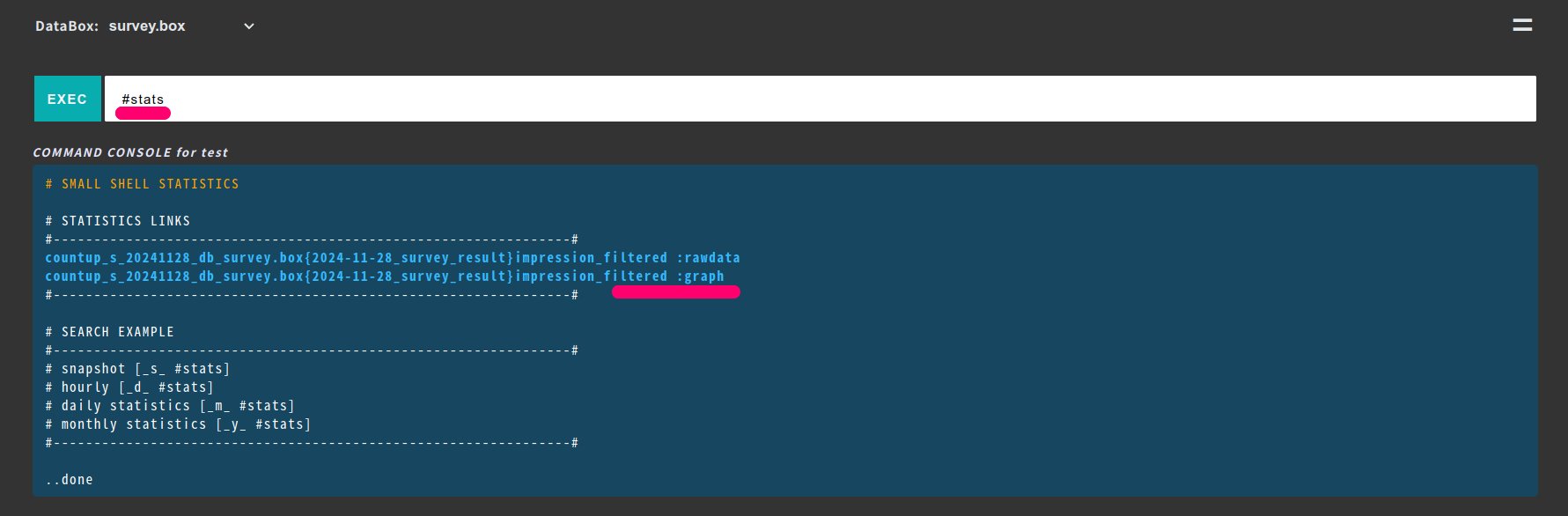

please input #stats to console box on Base APP.

Base APP > Console Box [#stats]

Screenshot

Screenshot

Change Form view

You can modify html descriptor directly.

sudo vi /var/www/descriptor/${Form}_get_new.html.def

e.g.) sudo vi /var/www/descriptor/survey_get_new.html.def

--code--
<html>
  <head>
    <meta charset="UTF-8" />
    <title>survey.new</title>
    <meta name="viewport" content="width=device-width,initial-scale=1.0,minimum-scale=1.0,maximum-scale=1.0,user-scalable=no">
    <link rel="stylesheet" href="./survey_css">
  </head>
  <body>
    <div class="container">
      <div class="form-box">
        <div class="description">
          <h1>#survey</h1>
          <p>This is a internal survey of product A</p>
          <hr>
          <br>
        </div>
        <form method="post" action="./survey?req=set&id=%%id" onclick="document.charset='utf-8';">
        <ul>
         %%dataset
        </ul>
        <button class="button" type="submit">SUBMIT</button>
        </form>
      </div>
    </div>
  </body>
</html>
-------

Change row size for textarea

You can change row size by inserting code to ${Form}_new.html.def.

e.g)
sudo vi /var/www/descriptor/survey_new.html.def

--code--
<script>
  document.getElementById("txtara").rows="10"
</script>
--------
