APP Shell

You can generate Web application with standard css design very easily. Basically each types of APP is customizable but Base APP is base layer of each application, so it's recommended to generate scratch APP for editting codes freely without any impact to base layer. as for portal page you can edit it very easily by using both markdown grammar or HTML/CSS framework, please check cookbook

Types of small-shell APP

Type	Authentication	View	Data src	Code	Data Access
Base APP	Base64 encrypted Key	table,form,console,log,graph	All Databox	Basically Uneditable	Full & Flat but control rw/ro permission
WEB Form	No auth	WEB form	Specific Databox	Editable	Just push new data through dedicated Form
Shared APP	Shared Pass Code	portal,table,form,log	Specific Databox	Editable	Limitted & controllable
Key APP	Base64 encrypted Key	portal,table,form,log	Specific Databox	Editable	Limitted & controllable
Other	Any #Oauth other	portal,table,form,log	Specific Databox	Editable	Limitted & controllable
None auth	No authentication	portal,table,form	Specific Databox	Editable	Basically read only

required

Please setup OS Env beorehand refering to Quick start, then start dialog by gen command.

Generate Base APP

Once OS setup has been done, let's tart to generate Base APP through gen dialog.

sudo /usr/local/small-shell/adm/gen -app
#-> dialog will be started

# Dialog
-----------------------------------------------------------------
sudo /usr/local/small-shell/adm/gen -app
Type of APP (1.BASE | 2.FORM | 3.SCRATCH): 1
Type of server (1.small-shell WEB srv | 2.other WEB srv): 1
Protocol (http | https): https
WEB Server FQDN or IP addr (e.g. 192.168.10.1): ec2-XX-XX-XX-XX.XXXX.com
ssl cert path : /root/cert.pem
ssl privare key path : /root/private.pem
Do you need to use chain certificate? (yes | no): no
-----------------------------------------------------------------

small-shell WEB srv

small-shell contain default WEB server that is written by javascipt using Node.js. it can be managed by systemctl command. ofcourse you can use your favorite WEB server as well, in that case please select "other WEB srv" and input detail to the dialog. we verified that small-shell can be worked without any problem on Apache and Nginx.

Define dataset of WEB APP

For the first step, it's required to define dataset that will be refered from APP. "label" will be shown in the table and Form of APP. you can also define parameters of select, radio or checkbox in the dialog. by the way, there is 2 type of primary key. please check detail on databox feature

sudo /usr/local/small-shell/adm/gen -databox

This is exmpale of dialog result.

Databox will be generated by following order, please check it
-----------------------------------------------------------------

Databox Name:inventory.db
#primary_key
name="item_name"
label="Item Name"
type="text"
option="required"

#column2
name="description"
label="Description"
type="text"
option=""

#column3
name="category"
label="Category"
type="select"
params="PC,network_device,audio_visual,furniture,other"
option="required"

#column4
name="num"
label="Num"
type="number"
option="required"

-----------------------------------------------------------------

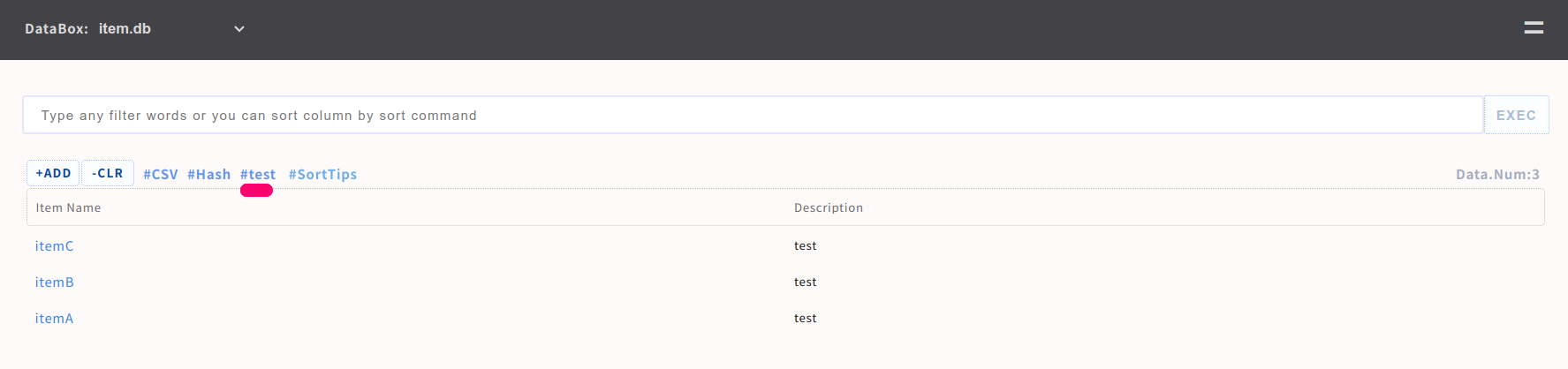

This is image of dataset inserted to the APP.

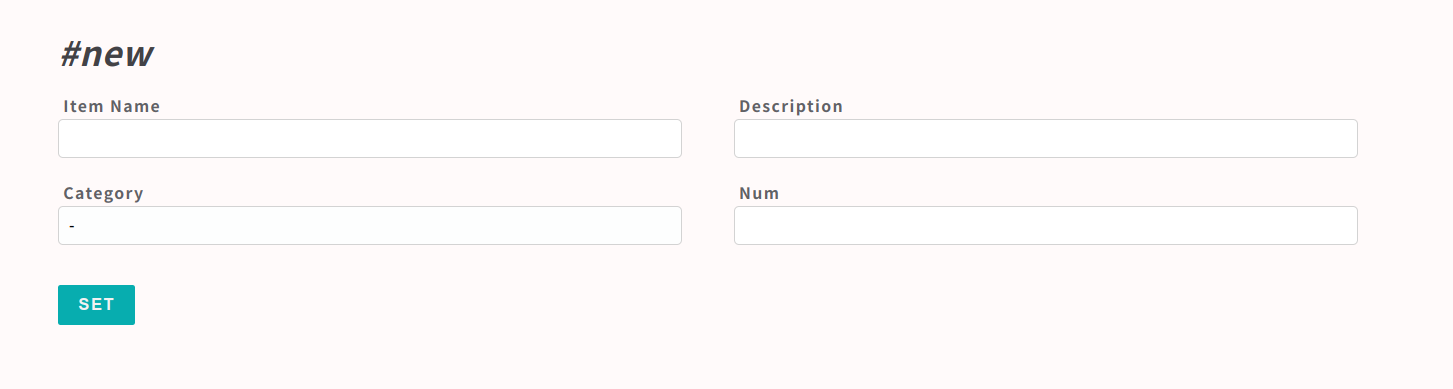

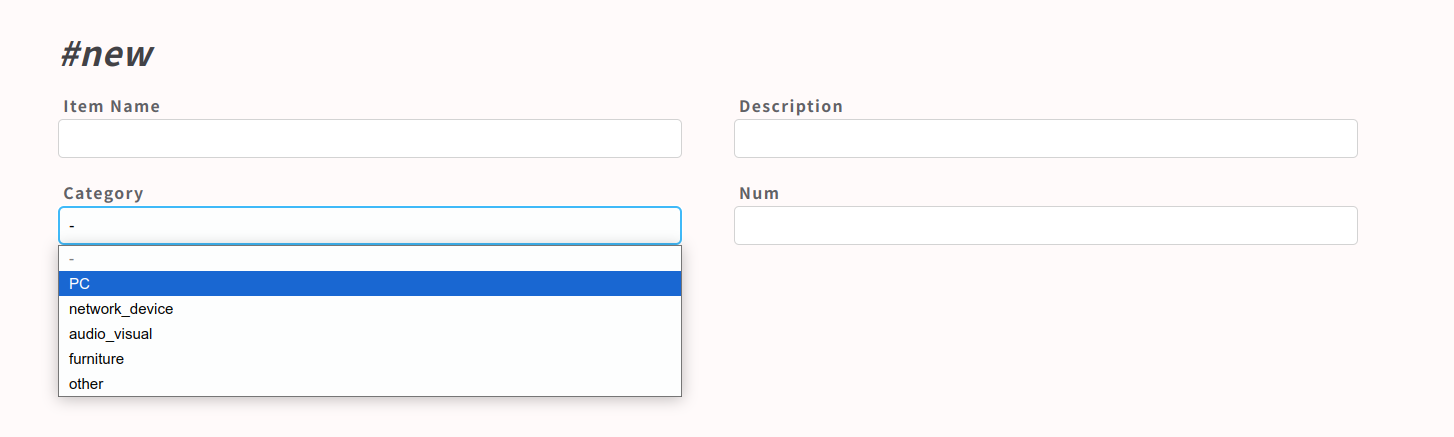

Parameters that is defined in the dialog will be inserted like below.

Add / initialize user

Following example is adding user name "test", "test" can initialize and get base64 key by accessing the URL that is generated by ops command. the key will be stored to end user browser automatically using localstorage.

sudo /usr/local/small-shell/adm/ops add.usr:test
-----------------------------------------------------------------
Key initializing & generating URL for test on Base APP is here
-----------------------------------------------------------------
https://ec2-XX-XX-XX-XX.XXXX.com/cgi-bin/auth.base?initialize=*****fce76b37e4e93b7605022da52e6ccc26fd2,4c5a2ae68d20e530b4ce457c71eae42590135268e1fb933a945f7e188678ccf4

Access URL of Base APP

As you already checked, access URL is shown in the result of ops add command. if you are using small-shell default WEB server, URL must be $FQDN/base.

e.g.) https://ec2-XX-XX-XX-XX.XXXX.com/base

Re-generate User key

If end user lost their key, you can generate URL for re-generating key.

sudo /usr/local/small-shell/adm/ops initialize.usr:test
-----------------------------------------------------------------
Key initializing & generating URL for test on Base APP is here
-----------------------------------------------------------------
https://ec2-XX-XX-XX-XX.XXXX.com/cgi-bin/auth.base?initialize=*****fce76b37e4e93b7605022da52e6ccc26fd2,4c5a2ae68d20e530b4ce457c71eae42590135268e1fb933a945f7e188678ccf4

Modify dataset

You can modify dataset anytime later.

Add | Del Column

Column can be added or deleted by gen command

sudo /usr/local/small-shell/adm/gen -addcol
sudo /usr/local/small-shell/adm/gen -delcol

Change label

Label definition can be modified directly

(e.g.) change inventory.db col2 label
sudo vi /usr/local/small-shell/databox/inventory.db/def/col2

--code--
name="description"
label="description"
type="text"
option=""
--------

Change params of select type or radio

Params can be also modified directly

(e.g.) change inventory.db col3
sudo vi /usr/local/small-shell/databox/inventory.db/def/col3

--code--
name="item_type"
label="item_type"
type="select"
params="PC,network_device,audio_visual,furniture,other"
option="required"
--------

Insert data list to Form

You can import primary data list from other databox to the Form using "pdls". following is an example that can show how you can utilize pdls.

type=pdls

Import target: inventory.db New databox : request.db <- import item list

sudo /usr/local/small-shell/adm/gen -databox

# result of dialog
-----------------------------------------------------------------
databox_name:order.db
#primary_key
name="hashid"
label="hashid"
type="text"
option="required"

#column2
name="item"
label="item"
type="pdls"
pdlsbox="inventory.db"
option="required"

#column3
name="num"
label="Num of item"
type="number"
option="required"
-----------------------------------------------------------------

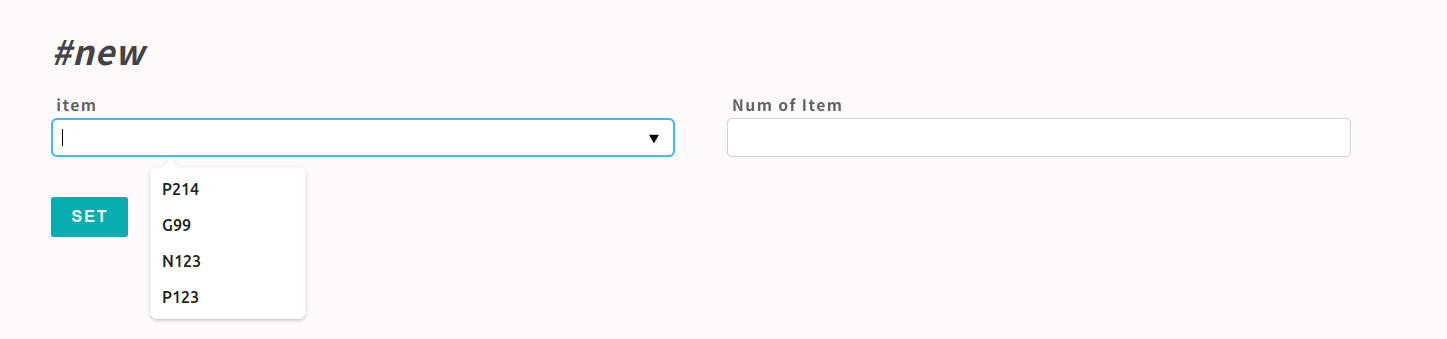

Image of request Form using pdls is as following.

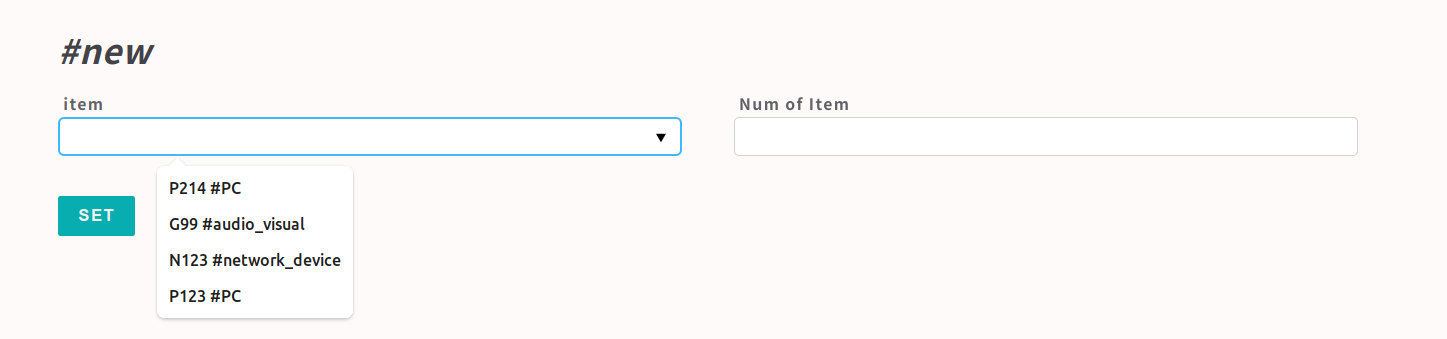

+addkvl

Besides importing primary key value, you can import 1 other column as well by adding addkvl param manually. following example is adding item_type to the importing value.

# edit target coumn, in this example col3 is target.
sudo vi /usr/local/small-shell/databox/order.db/def/col2

--code--
name="item"
label="item"
type="pdls"
pdlsbox="inventory.db"
option="required"
addkvl="category" #<- add by manually
--------

Change user permission

You can cpontroll user permission. user default permission is "read/write"

# read write permission
sudo /usr/local/small-shell/adm/ops set.attr:$user{rw}

# read only permission
sudo /usr/local/small-shell/adm/ops set.attr:$user{ro}

e.g)
# change test user to read only permission
sudo /usr/local/small-shell/adm/ops set.attr:test{ro}

MVC model

You can customize small shell by understanding similar MVC model concept.

Basic structure

# Directory of small-shell core
/usr/local/small-shell/bin
 |- auth # used for base64 encrypted key auth
 |- extension_auth # used for Scratch APP user auth
 |- DATA_shell # CLI tool for accessing data shell
 |- meta # show meta data
/usr/local/small-shell/adm
 |- ops
 |- gen #generate CGI, DATA, Automate shells

# Directory for APP
$cgidir (/var/www/cgi-bin #default)
 |- base # Base APP controller
 |- auth.base # Base APP authenticator
 |- api
 |- e-cron
 |- ${app} # scratch APP controller
 |- auth.${app} # scratch APP authenticator

$bin (/var/www/bin)
 |- action_scripts # work as Model
 |- parse.sh #it will be used for parsing posted params

$descriptor (/var/www/descriptor)
 |- html_definitions # work as definition of view

$app (/var/www/app)
 |-index.js # small-shell default web server
 |-log # default server log

$tmp (/var/www/tmp)

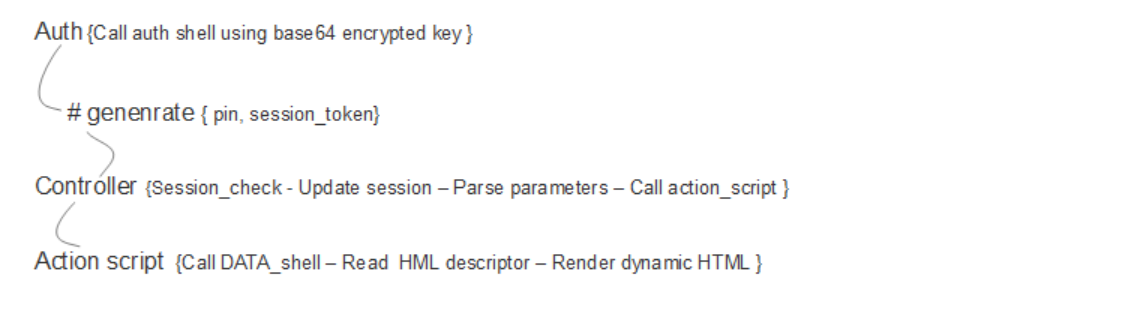

Data flow

Following is a data flow of APP shell it will be used as Base APP or Scratch APP

URL design

Query string will be loaded same name of valiables in the APP

https://$[server]/cgi-bin/${app}?req=get&databox=inventory.db&id=1234 ..

These query string will be loaded as following value in the APP
-> req=get
-> databox=inventory.db
-> id=1234

Routing in controller # Base APP

Routings to the action scripts are defined in the controller script.

sudo vi $cgi-bin/base (e.g. /var/www/cgi-bin/base)

--code--
#----------------------------
# routing to action scripts
#----------------------------

#e.g. get request
case "$req" in

"get")
    ../bin/get.sh databox:$databox id:$id session:$session ;;
--------

Action scripts (model)

Action scripts will work with folloging STEPS

1. Load parameters from QUERY string
2. Load parameters from POST data
3. Call DATA shell
4. Insert dynamic contents to %%tags
5. Render pure HTML to client

Load QUERY string (e.g. $databox,$id,$session) that will be passsed from controller as parameter

sudo vi $bin/get.sh (e.g. /var/www/bin/get.sh)

--code--
# load query string param @actionscripts
for param in `echo $@`
do

  if [[ $param == databox:* ]]; then
    databox=`echo $param | $AWK -F":" '{print $2}'`
  fi

  if [[ $param == id:* ]]; then
    id=`echo $param | $AWK -F":" '{print $2}'`
  fi

  if [[ $param == session:* ]]; then
    session=`echo $param | $AWK -F":" '{print $2}'`
  fi

done
-------

Load POST data that is stored by controller ../tmp/$session/$key

(e.g. item_name)

sudo vi $bin/get.sh (e.g. /var/www/bin/get.sh)

--code--
item_name=`cat ../tmp/$session/item_name`
--------

Generate data by calling DATA_shell with html format (e.g. accesing to inventory.db)

sudo vi $bin/get.sh (e.g. /var/www/bin/get.sh)

--code--
sudo -u small-shell ${small_shell_path}/bin/DATA_shell session:$session pin:$pin databox:inventory.db \
action:get id:$id keys:all format:html_tag > ../tmp/$session/dataset
--------

Render HTML with inserting dynamic contents to %%tags (e.g. dataset{html_tag} from inventory.db)

sudo vi $bin/get.sh (e.g. /var/www/bin/get.sh)

--code--
cat ../descriptor/get.html.def | $SED "s/^ *</</g" \
| $SED "/%%dataset/r ../tmp/$session/dataset" \
| $SED "s/%%dataset//g"
--------

html.def (view)

Just write down pure HTML. %%tag can be replaced to dynamic contents

sudo vi $descriptor/$htmldef (e.g. /var/www/descriptor/get.html.def)

--code--
<h2>Data.values</h2>
<p><b>#ID </b>%%id</p>
</div>
<form method="post" action="./base?%%params&req=set&id=%%id&post=yes" onclick="document.charset='utf-8';">
<ul>
%%dataset
</ul>
<button class="button" type="submit">UPDATE</button>
</form>
--------

Rendered Pure HTML

Once action script is executed by accessing the page, pure HTML will be rendered by inserting dynamic contents to %%dataset tag.

<h2>Data.values</h2>
<p><b>#ID </b>81416a688e358d92b2a9f2ad412cb5fa60cae8e04f611335a14c6dafe2614f1e</p>
</div>
<form method="post" action="./base?session=54c59a2567b0ac722855c801c7008a071b386f7b63ce2d6c138f5e0d94350037&pin=29449&databox=inventory.db&req=set&id=81416a688e358d92b2a9f2ad412cb5fa60cae8e04f611335a14c6dafe2614f1e&post=yes" onclick="document.charset='utf-8';">
<ul>
<li>
<label>item_name (Fixed)</label>
<p>small egg</p>
</li>
<li>
<label>description</label>
<input type="text" name="description" value="It's a small world egg" >
</li>
<li>
<label>stock</label>
<input type="hidden" name="stock" value="">
<input type="checkbox" name="stock" value="yes" checked="checked">
</li>
<li>
<label>item_type</label>
<select name="item_type" >
<option value="other">other</option>
<option value="book">book</option>
<option value="furniture">furniture</option>
<option value="electric">electric</option>
<option value="other">other</option>
</select>
</li>
</ul>
<button class="button" type="submit">UPDATE</button>
</form>

Parse

parse.sh will be used for parsing posted data. posted data will be stored to files in output dir.

PATH

$bin/parse.sh (e.g. /var/www/bin/parse.sh)

Usage

parse.sh $session $type

input

../tmp/$session/input (e.g. /var/www/tmp/$session/input)

type

urlenc # normal post
multipart # multipart/form-data
binary  # binary post
json #json post

output

Output will be dumped to ../tmp/$session directory

# parsed key value
ls /var/www/tmp/$session/$key

# get key's value
cat /var/www/tmp/$session/$key

# parsed file
ls /var/www/tmp/$session/binary_file/file_name #contain file name
ls /var/www/tmp/$session/binary_file/binary.data #binary data

Parse usage in the APP

# sudo vi $cgidir/base
sudo vi /var/www/cgi-bin/base

--code--
# dump POST data
if [ "`echo $REQUEST_METHOD | grep -i "POST"`" ];then

  if [ "`echo $CONTENT_TYPE | grep "application/json"`" ];then
    method=json
  elif [ "`echo $CONTENT_TYPE | grep "multipart/form-data"`" ];then
    method=multipart
  elif [ "`echo $CONTENT_TYPE | grep "application/octet-stream"`" ];then
    method=data-binary
  else
    method=urlenc
  fi

  mkdir ../tmp/$session
  # dump posted data
  dd bs=${CONTENT_LENGTH} of=../tmp/$session/input 2>/dev/null
  ../bin/parse.sh $session $method

fi
--------

Debug techniques

Check error log

# small-shell default web
sudo tail -f /var/www/log/srvdump.log

# ubuntu & apache2
sudo tail -f /var/log/apache2/error_log

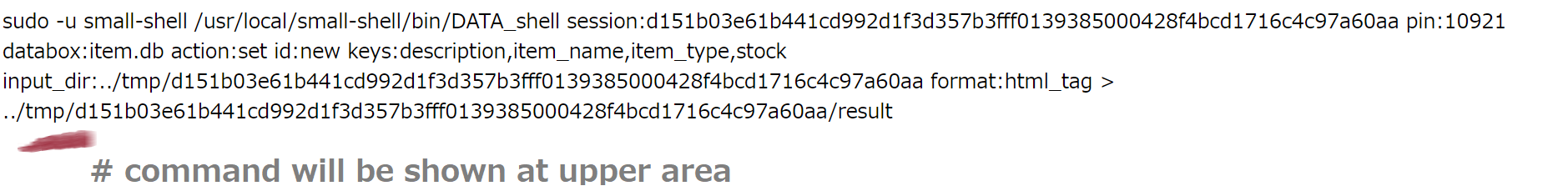

Posted param and command result check

comment out tmp dir removal

sudo vi /var/www/bin/set.sh

--code--
#if [ "$session" ];then
#  rm -rf ../tmp/$session
#fi
--------

Then check /var/www/tmp, you can check posted params after post data on tmp dir

e.g.
$ ls /var/www/tmp
b5ee3b232da9615cb7dda3838cc689aea77b323c3623c34c509d541eef9800eb
$ cd b5ee3b232da9615cb7dda3838cc689aea77b323c3623c34c509d541eef9800eb
$ ls
category  databox_list  issue_link  result  status

check posted param

$ cat status
available

check result

$ cat result
successfully set 181210f8f9c779c26da1d9b2075bde0127302ee0e3fca38c9a83f5b1dd8e5d3b category
info: issue_link value{} is same as original value
info: status value{available} is same as original value

Exec Command check

show exec command by echo "", then you can check command and parameters. it can be chcked on browser.

sudo vi $bin/$actionscript (e.g. /var/www/bin/set.sh)

--code--
# set and get %%result contents
sudo -u small-shell ${small_shell_path}/bin/DATA_shell session:$session pin:$pin databox:$databox \
action:set id:$id keys:$keys input_dir:../tmp/$session format:html_tag > ../tmp/$session/result

# add echo command & sleep to show command
echo "sudo -u small-shell ${small_shell_path}/bin/DATA_shell session:$session pin:$pin databox:$databox \
action:set id:$id keys:$keys input_dir:../tmp/$session format:html_tag > ../tmp/$session/result"
sleep 10
--------

You could find specific command that will be executed by action script (e.g. set.sh), following is an example executing set.sh on Base APP.

Exec command with debug mode

# Exec command on bash directly
authkey="XXXX" please input your authkey
sudo -u small-shell bash -x /usr/local/small-shell/bin/DATA_shell authkey:$authkey + "parameters that shown on the page"

Tagging on Base APP

You can add tag to the table. the tag can be used for searching with specific word.

Add tag thoroug small-shell command

sudo /usr/local/small-shell/adm/ops add.tag:$databox{word}
(e.g.)
sudo /usr/local/small-shell/adm/ops add.tag:item.db{test}

Delete tag on small-shell server

sudo /usr/local/small-shell/adm/ops del.tag:$databox{word}
(e.g.)
sudo /usr/local/small-shell/adm/ops del.tag:item.db{test}

This is example of tag of word{test}, If you click the tag, search result will be shown.

IP whitelisting

You can set IP whitelisting to restrict access to APP. it will be deployed to Base APP automatically. it can be deployed to Form and Scratch APPs, if it's enabled in the gen dialog.

sudo /usr/local/small-shell/adm/ops set.IP
# vi will be launched
#########################################################
# please write down IP num which can be allowed
#########################################################
# Exmaple;

# specific IP
# 192.168.1.10

# Range IPs
# 10.10.*

Command API

You can access command API from external systems. command API priviledge is read only as default.

confirm API key

sudo cat /usr/local/small-shell/web/base | grep api_authkey

confirm API url

sudo cat /usr/local/small-shell/web/base | grep commandapi

Change permission to rw (optional)

if you want to set data from external system, please change permission for api user.

sudo /usr/local/small-shell/adm/ops set.attr:api{rw}

Access to command API

please access command API from external system, you can access the data using curl very easily.

From Linux shell with curl

api_authkey="XXXX"
commandapi="https://XXXX/cgi-bin/api"
databox="XXXX"

(e.g.) exec "grep test" command to index
curl -X GET "${commandapi}?databox=$databox&command=grep_test" -H "X-small-shell-authkey:$api_authkey"

(e.g.) get DATA
id="0283da60063abfb3a87f1aed845d17fe2d9ba8c780b478dc4ae048f5ee97a6d5" #please input id that you want to get
curl -X GET "${commandapi}?databox=$databox&keys=all&id=$id" -H "X-small-shell-authkey:$api_authkey"

(e.g.) push DATA
sudo /usr/local/small-shell/adm/ops set.attr:api{rw}
id="new" #please input id that you want to set
curl -X POST "${commandapi}?databox=$databox&id=$id" -H "X-small-shell-authkey:$api_authkey" -H "Content-Type: application/json" -d '{"item_name":"item1", "description":"test"}'

From Windows power shell with curl

@External system (windwos)
$api_authkey="XXXX" #please input authkey that you confirmed
$commandapi="https://XXXX/cgi-bin/api"
$databox="XXXX"

(e.g.) exec grep command to index
curl.exe -X GET "${commandapi}?command=grep_test&databox=$databox" -H "X-small-shell-authkey:$api_authkey" -H "X-small-shell-databox:$databox"

(e.g.) get DATA
$id="0283da60063abfb3a87f1aed845d17fe2d9ba8c780b478dc4ae048f5ee97a6d5" #please input id that you want to get
curl.exe -X GET "${commandapi}?keys=all&id=$id&databox=$databox" -H "X-small-shell-authkey:$api_authkey" -H "X-small-shell-databox:$databox"

Upgrade SSL cert and key

When you upgrade SSL cert and key for small-shell default WEB server, you need to re-generate Base APP by gen command. all service will be down during this upgrade.

/usr/local/small-shell/gen -app
-----------------------------------------------
Type of APP (1.BASE | 2.FORM | 3.SCRATCH): 1
------------------------------------------------
-> dialog will be started

Verified environment

OS: Ubuntu 2X (recommnded), Debian 1X, macOS Monterey, CentOS 7, RHEL 8
bash: 4.X
Web : Node.js 20, 19.X + express 4.X , Apache 2.X , nginx 1.X
curl: 7.X

# REQUIRED commands
Core commands : sha256sum, flock, base64
awk : above 3 that can use "IGNORECASE = 1;" option
sed : above 4.2.2 that can use "-z" option
PHP : any version which have PHP url encyption libraries
